Z67092 - valve housing - new type valve

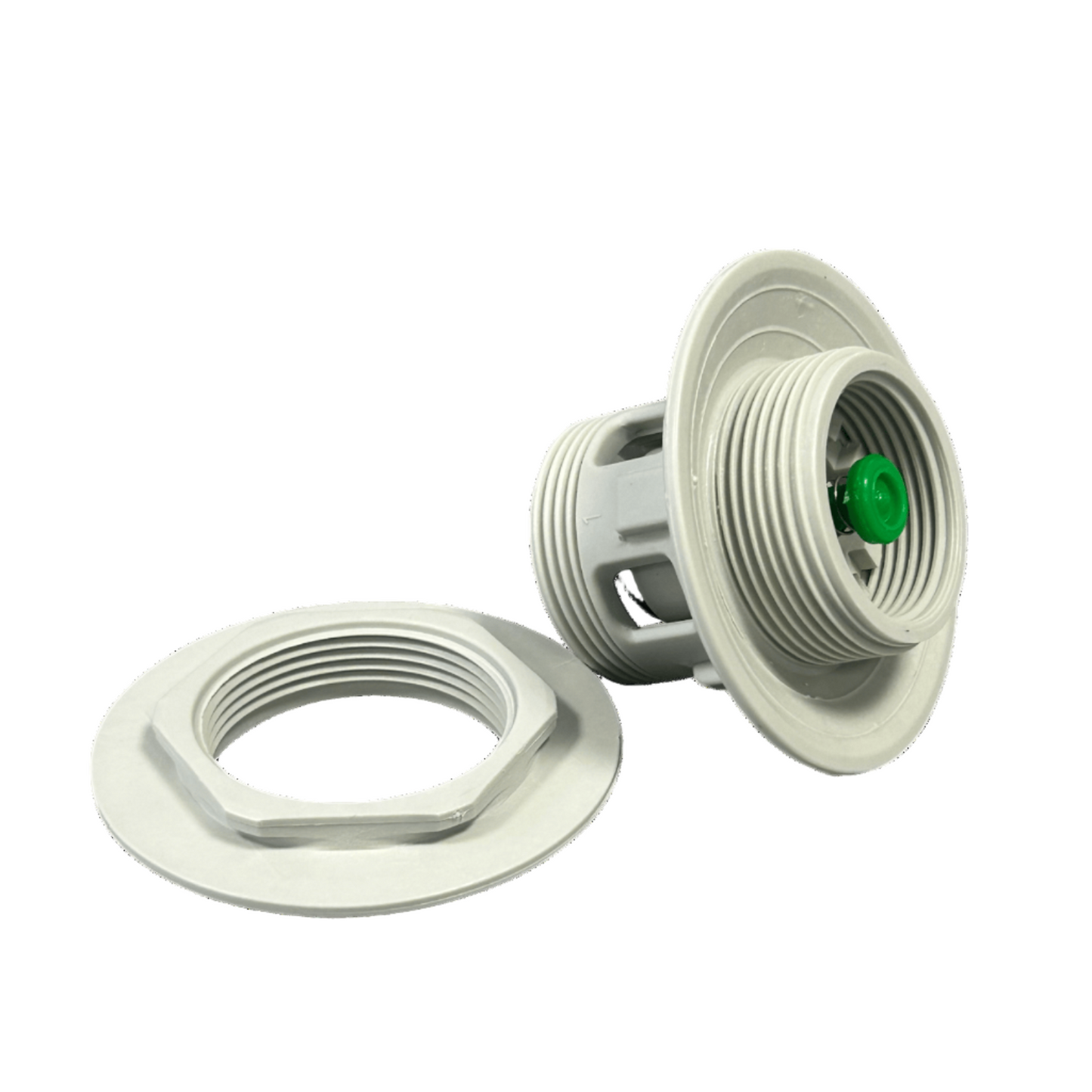

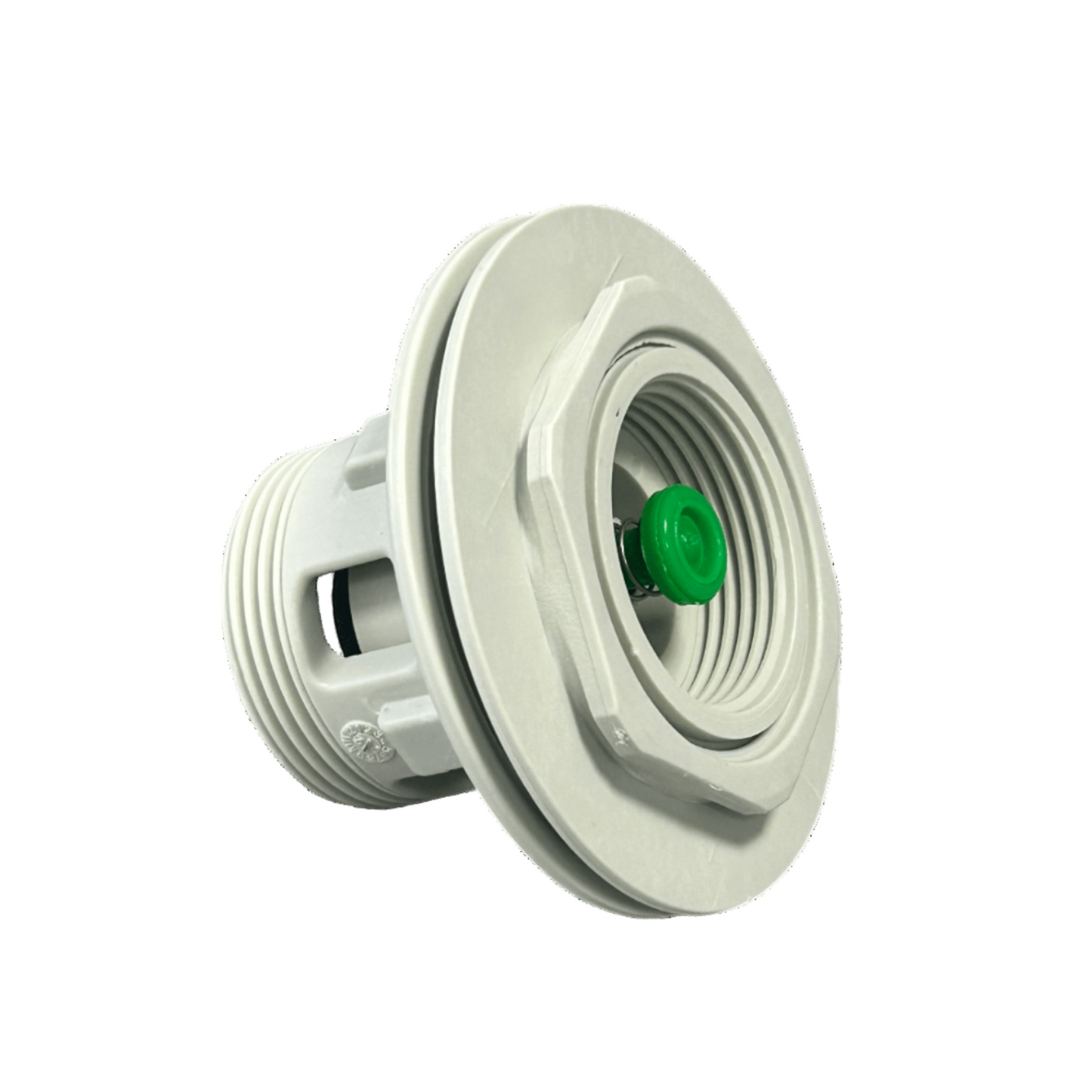

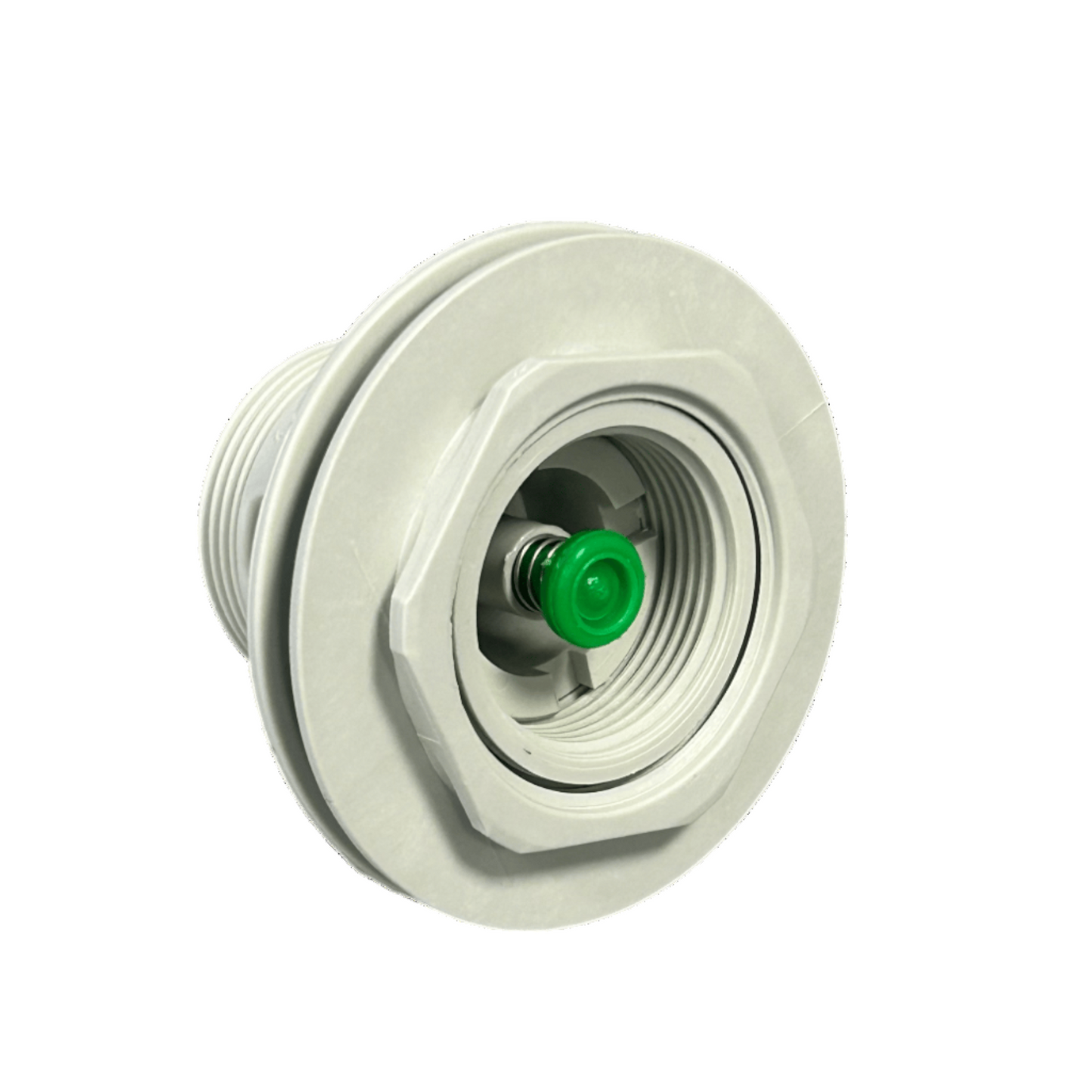

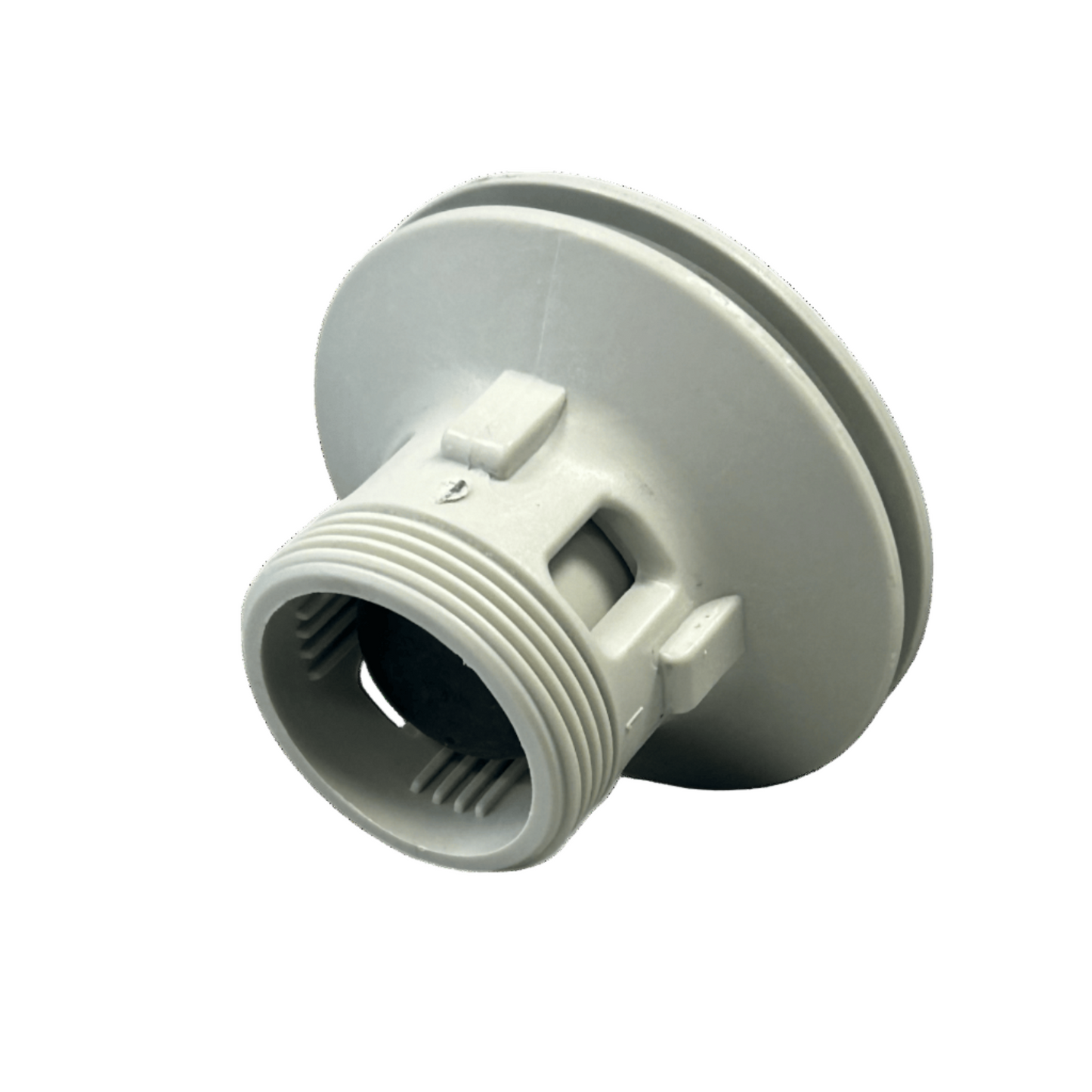

Valve housing Z67092 – new semi-flush valve type – Zodiac & Bombard

The Z67092 valve housing is part of the new type of semi-flush valves used on Zodiac and Bombard inflatable boats and RIBs . This housing ensures a reliable, airtight seal and is designed for long-term use under tough conditions.

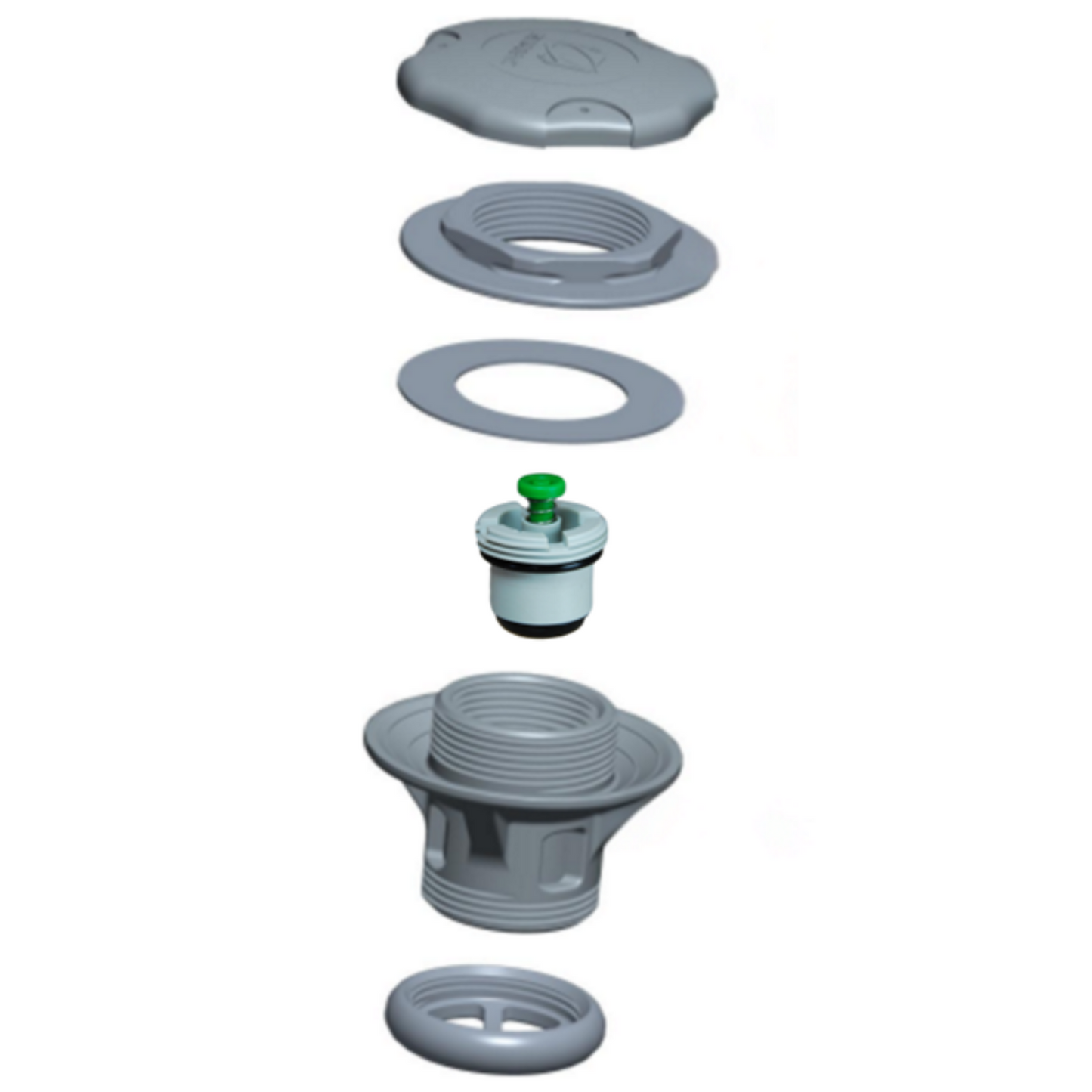

The housing comes standard with the Z67080 valve insert , but this insert is also available separately. The valve housing consists of two parts that are placed on either side of the float's cover.

The bottom part of the housing goes inside the float. Then, place gasket Z6852 against the canvas on the inside, then the boat material itself, and finally, the valve housing sealing ring on the outside.

Diaphragm Z6852 is not included as standard, but is available separately through the related products. The matching end caps for this valve type are Z67300 (black) and Z67395 (gray) .

Not sure which valve type your Zodiac or Bombard inflatable boat has?
Please contact us, we are happy to help you.
